Choose professional ventilation by airflow, air pressure and air path
Industrial and commercial ventilation fans cover very different air-movement tasks, from high-volume room circulation and targeted air transport to ducted ventilation and destratification. Compare airflow in m³/h, available air pressure in Pa, duct or hose requirements, electrical supply, operating environment and installation before choosing the appropriate fan technology.
Define the ventilation task before comparing fan performance
Professional ventilation starts with the result the system has to achieve. Moving large volumes of air freely through a hall requires a different fan design from transporting air through a long hose, extracting air from a defined area or circulating warm air down from a high ceiling.
Define whether the application requires free-air circulation, supply or exhaust air, ducted air transport, drying support, destratification or another specific airflow task. This prevents a high headline airflow value from being mistaken for proof that a fan will perform equally well in every installation.
Compare airflow and air pressure together
Airflow in m³/h describes the volume of air a fan can move, while air pressure in Pa describes its ability to maintain useful airflow against resistance. Both values matter in professional ventilation, but their importance changes with the application.
For free-air circulation in a large open area, high air volume can be the primary requirement. Once hoses, bends, filters, reducers or longer duct routes are added, pressure losses become increasingly important. For ducted installations, compare the available performance data or characteristic curve at the expected resistance rather than selecting a fan only by its maximum free-air volume.

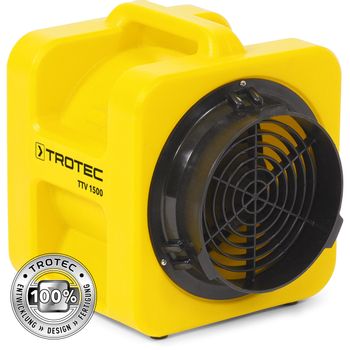

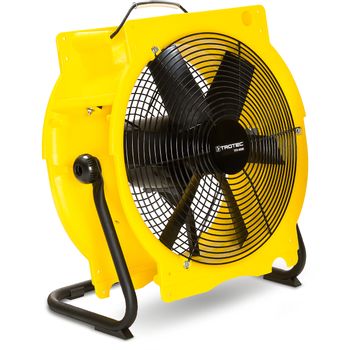

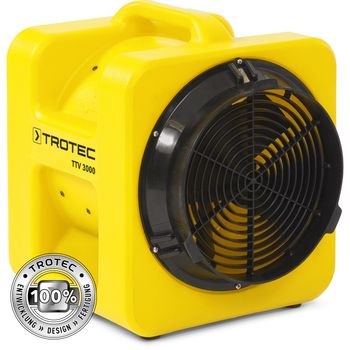

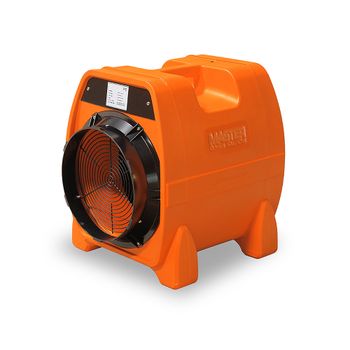

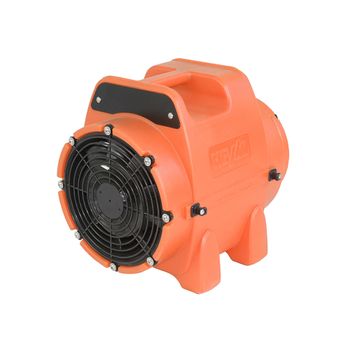

Use axial fans for flexible high-volume air movement
Axial fans move air in the same general direction as the fan shaft and are well suited to many high-volume ventilation and air-circulation tasks. Depending on the exact model and accessories, they can support free-air operation as well as supply, exhaust, dust-extraction or hose-based air transport.
Pressure capability still differs significantly within the axial-fan category. High-pressure axial variants can be better suited to longer air-transport routes than standard models, so compare both air volume and available pressure when hoses or other restrictions are part of the setup.

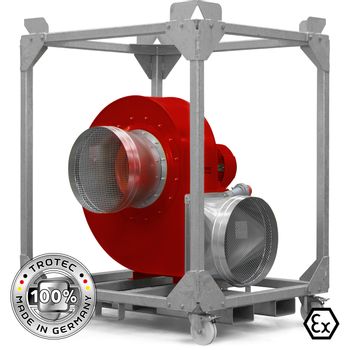

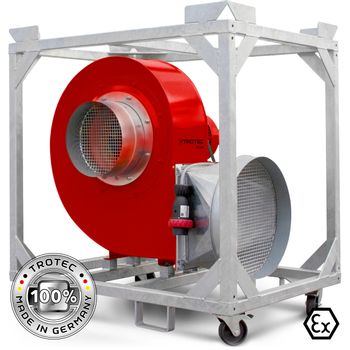

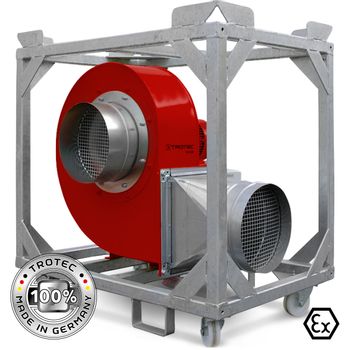

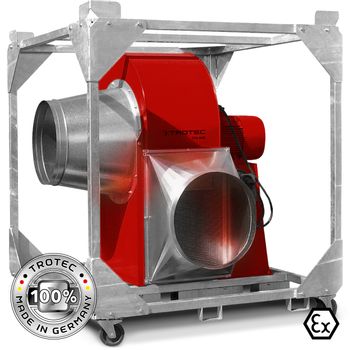

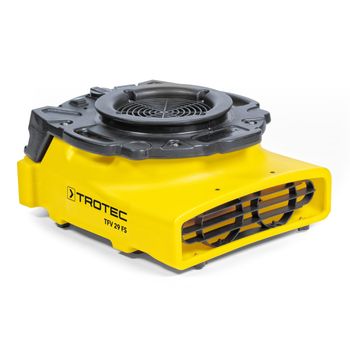

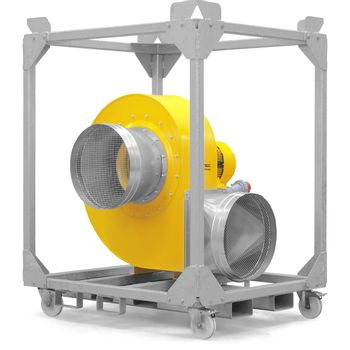

Choose centrifugal or radial fans when resistance is higher
Centrifugal and radial fans can provide considerably higher pressure where air must travel through longer hoses, duct networks or other installations with substantial resistance. This makes pressure capability a key selection value alongside maximum airflow.
The required fan should be matched to the actual pressure loss of the air path. Hose length, diameter, bends, filters and fittings all affect resistance, so a high-pressure fan should not be selected from the maximum Pa value alone. Compare the operating point, available connections and permitted air temperature for the complete system.
Treat hoses, adapters and ducts as part of the ventilation system
Connecting a hose changes how a fan operates because every air path introduces resistance. Select the hose diameter, construction and length according to the compatible fan connection and the pressure conditions on the intake or discharge side.
Also check the permitted transport-air temperature and any application-specific material requirements. Standard flexible ventilation hoses, reinforced suction hoses and antistatic hose types are not interchangeable simply because their diameters are similar. Use the compatible connecting nozzles and accessories specified for the exact fan and hose combination.
Use ceiling fans for destratification and high-level air circulation
Commercial ceiling fans provide a different type of ventilation from portable axial or centrifugal units. Installed at height, they can circulate large volumes of room air and reduce temperature stratification by moving warmer ceiling air back toward occupied areas.
In warmer conditions, increased air movement can create a cooling sensation for people below the fan, but the fan does not provide refrigeration or evaporative cooling with water. Check ceiling structure, installation height, electrical connection, fan diameter and the documented effective area for the exact model before planning a fixed installation.

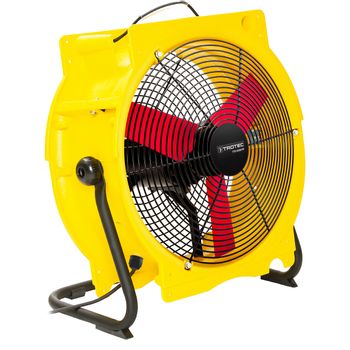

Use wind machines for very high free-air circulation
Drum fans and wind machines are designed to move very large volumes of air through open areas. Their wheeled frames and adjustable discharge direction can make them useful for large-scale air circulation and for supporting drying where strong free-air movement is required.
High air volume does not make a wind machine equivalent to a high-pressure duct fan. Compare maximum pressure as well as airflow if the application involves hoses or significant system resistance. Also check the permitted operating environment, sound level and required safety clearances for the exact machine.
Check electrical supply and environmental limits by model
Professional fans can differ substantially in electrical and environmental requirements. Some portable models operate from a 230 V supply, while higher-power industrial radial fans can require a 400 V connection and suitable fuse protection.
Protection class, ambient temperature, maximum transport-air temperature and outdoor suitability are also model-specific. Do not infer approval for wet areas, aggressive atmospheres, explosive environments or unrestricted outdoor operation from the terms commercial or industrial. Where explosion protection is required, select an explicitly certified model for the relevant zone and application.
Plan noise, clearances, mobility and maintenance
High-performance ventilation equipment can generate substantial airflow and operating noise. Compare the documented sound value together with the stated measurement distance, particularly where fans will operate close to workstations or occupied areas.
Installation space also includes the clear area required around the suction and discharge sides. Keep these air paths unobstructed and allow sufficient space for hoses, protective grilles and service access. For mobile equipment, compare weight, handles, wheels and transport requirements rather than assuming that every portable professional fan can be moved by one person.
Choose the fan category that matches the air-transport problem
The most suitable professional fan depends on the complete airflow path rather than maximum m³/h alone.
- Choose an axial fan for flexible high-volume air circulation and compatible hose-based applications;
- Choose a high-pressure centrifugal or radial fan where longer ducts or greater system resistance require more pressure;
- Choose a ceiling fan for fixed destratification and high-level room-air circulation;
- Choose a wind machine for very high free-air movement across large open areas;
- Select air transport hoses by diameter, pressure side, temperature range, material and exact connection compatibility;
- Verify electrical supply, protection class, operating conditions, sound, clearances and accessories before putting the complete ventilation system into operation.
