Professional airflow systems for drying damp insulation layers
Insulation drying units create controlled airflow through damp insulation layers beneath floating screeds, warm roofs and hollow floors. TROTEC systems support positive-pressure and low-pressure drying methods, with different airflow, pressure and system configurations for professional water damage restoration.
Insulation drying targets moisture beneath the visible surface
After water damage, moisture can remain trapped inside insulation layers even when accessible surfaces have already been dried. Professional insulation drying creates a defined airflow through these concealed construction layers so that moisture can be transferred into the moving air.
The appropriate setup depends on the construction, affected area, moisture distribution and the drying method selected for the restoration project.
Positive-pressure and low-pressure drying use different airflow directions
In positive-pressure drying, conditioned room air is forced through openings into the damp insulation layer and flows back into the room through available escape paths.
Low-pressure drying reverses the airflow direction. Air is extracted from the insulation layer through the drying openings and routed through the required separation and filtration components before reaching the insulation drying unit.
Low-pressure drying combines extraction with water separation and filtration
Extracted air from a damp insulation layer can contain free water and particles. A low-pressure drying setup therefore combines the insulation dryer with suitable upstream components such as a water separator and filtration system.
This protects the turbine from contamination while allowing the extracted process air to be treated according to the requirements of the restoration project.
Insulation dryers and dehumidifiers perform complementary tasks
An insulation drying unit creates the pressure difference and airflow required to move air through the affected construction layer. It does not itself remove water vapour from the surrounding room air.
Suitable mobile dehumidifiers can therefore form part of the overall drying setup by removing moisture released into the room air and supplying drier air for the continuing drying process.
Airflow and pressure determine how the drying system performs
Insulation drying requires both sufficient airflow and enough pressure to overcome the resistance of the construction and connected system components. The required combination changes with the drying area, insulation structure, hose layout and selected pressure method.
Professional selection should therefore consider volumetric airflow together with the available positive or negative pressure rather than comparing maximum airflow alone.
Hose diameter and distribution affect the available airflow
Air transport hoses, distributors, filters and connection components all create resistance within an insulation drying system. Hose diameter, hose length and the number of connected drying zones can therefore influence the airflow available at the construction layer.
Compatible distributors allow the process air to be divided between several drying points, while correctly sized connections help the insulation dryer operate within its intended performance range.
Modular and integrated systems support different restoration workflows

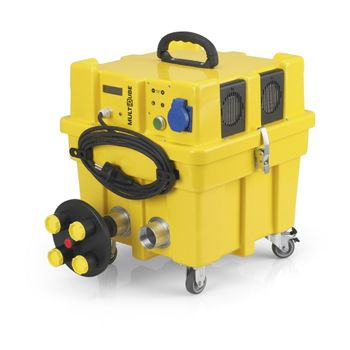

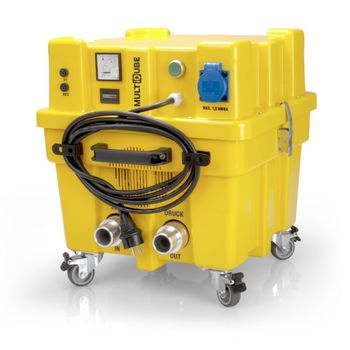

TROTEC provides both individual insulation drying units and integrated system solutions. Modular MultiQube components allow the turbine, water separator, filtration and sound reduction to be configured around the project.
Integrated solutions such as the Qube+ combine several of these functions in one compact system, reducing the number of separate components that need to be transported and connected on site.
Control functions help optimise the drying installation
Selected TROTEC insulation dryers provide several performance stages together with airflow monitoring, operating-hours information and energy-consumption data. This allows the operator to adapt the system to different drying configurations and monitor relevant operating parameters.
Sound reduction can also be incorporated into the setup where restoration work takes place in occupied or noise-sensitive buildings.
Configure the insulation drying system around the construction
- identify the affected insulation construction and the extent of the moisture damage;
- select positive-pressure or low-pressure drying according to the restoration requirements;
- match airflow and available pressure to the drying area and system resistance;
- include hose diameter, hose length and distribution components in the system layout;
- use suitable water separation and filtration when operating a low-pressure drying system;
- combine the system with appropriate dehumidification where moisture released into the room air needs to be removed;
- consider sound reduction and monitoring functions according to the restoration environment;
- match all filters, separators, hoses and accessories to the exact drying unit and system configuration.
